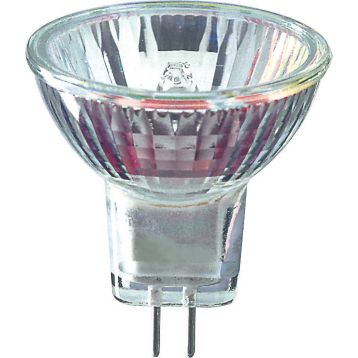

Brilliantline Dichroic
Low-voltage, xenon gas-filled halogen burner with axial filament optically positioned in a glass reflector
Download product leaflet
220.06 KB
Diagrams
Product Information
General Characteristics
| Philips Code | 14625 |
| ANSI Code Halogen | FTD |
| Cap-Base | GU4 |
| Bulb | MR11 [MR 11inch/35mm] |
| Bulb Finish | Clear |
| Burning Position | any [Any/Universal] |
| Life to 50% failures | 4000 hr |
| Nominal Lifetime | 4000 hr |
| Rated Lifetime (hours) | 4000 hr |
| Rated Lifetime (years) | 4 an |
Light Technical Characteristics
| Beam Angle | 30 D |
| Technical Beam Angle | 30 D |
| Luminous Intensity | 690 (max) cd |
| Colour Rendering Index | 100 Ra8 |
| Colour Temperature | 3000 K |
| Colour Temperature Technical | 3000 K |
| Rated Luminous Flux | 185 Lm |
| LLMF - end nominal lifetime | 80 (min) % |
| Rated Beam Angle | 30 D |
| Luminous flux in 90° cone | 185 Lm |
Electrical Characteristics
| Rated Wattage | 20.0 W |
| Lamp Wattage | 20 W |
| Technical Lamp Power | 20.0 W |
| Power Factor | 1 - |
| Voltage | 12 V |
| Lamp Current | 1.7 A |
| Dimmable | yes |
| Starting Time | 0.0 s |
| Warm-up Time to 60% Light Outp | instant full light |
Environmental Characteristics
| Energy Efficiency Label (EEL) | C |
| Energy consumption kWh/1000h | 21 kWh |
Measuring Conditions
| Switching cycle | 16000X |
Luminaire Design Requirements
| Cap-Base Temperature | 350 (max) C |
| Bulb Temperature | 300 (max) C |
Product Dimensions
| Overall Length C | 40 (max) mm |
| Diameter D | 35 (max) mm |
Product Data
| Order code | 425409 60 |
| Full product code | 871150042540960 |
| Full product name | Brilliantline Dichroic 20W GU4 12V MR11 30D 1CT |
| Order product name | Brilliantline Dichroic 20W GU4 12V MR11 30D 1CT |
| Pieces per pack | 1 |
| Packing configuration | 10X5F |
| Packs per outerbox | 50 |
| Bar code on pack - EAN1 | 8711500425409 |
| Bar code on intermediate packing - EAN2 | 8711500425416 |
| Bar code on outerbox - EAN3 | 8711500425423 |
| Logistic code(s) - 12NC | 924051317107 |
| ILCOS code | HRGS-20-12-GU4-35/30 |
| Net weight per piece | 13.000 gr |
